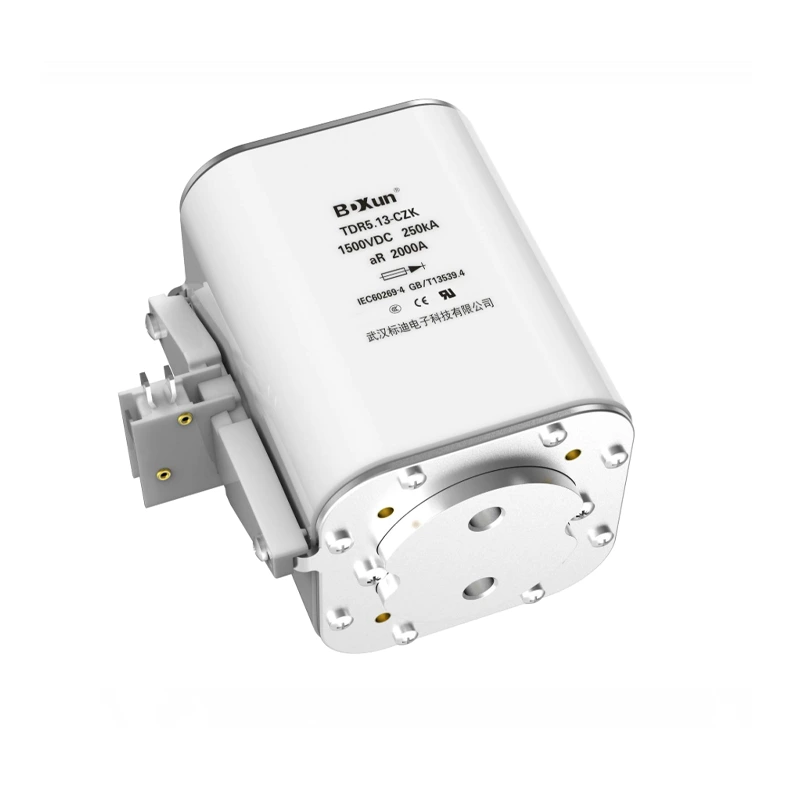

High Voltage DC Fuse 1500VDC 450A-2000A for Energy Storage, PCS and EV Charging Applications
DESIGN REFERENCE: UL248-13、IEC 60269-4、GB/T 13539.4
RATED VOLTAGE: DC1500V
RATED CURRENT: 450A～2000A
BREAKING CAPACITY: 250kA@4ms; 150kA@10ms
CERTIFICATION: 3C、CE、RoHS
APPLICATION: Electric vehicle drive power systems, Power conversion systems, Power batteries, Frequency converters, Chargers, Inverters, Energy storage, and Ships.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
The TDR5.13 Series High Speed DC Fuse is designed for reliable short-circuit protection in high-voltage DC applications, including Battery Energy Storage Systems (BESS), EV charging infrastructure, Power Conversion Systems (PCS), photovoltaic (PV) systems, battery packs, and industrial DC equipment.
- Rated Voltage: 1500VDC
- Current Range: 450A–2000A
- High Breaking Capacity: Up to 250kA
- aR Fast-Acting Protection
- Excellent Current Limiting Performance
- Low Power Loss
- Busbar Mounting Design
- Optional Fuse Indicator and Microswitch
- Compliant with IEC 60269-4 and UL248-13
- RoHS Compliant
- Long Service Life
- Ideal for BESS, PCS, EV Charging, Solar PV and Industrial DC Applications
| Catalog Numbers | Current ratings | I2t (kA2s) | 1.0In WATTS KOSS（W） |
Size | Installation torque |
|
| Rre-arc | Clearing | |||||
| TDR5.13-CZ(K)-450A/1500V | 450 | 492 | 2217 | 141 | TDR5.13-CZ(K) | M12: 42±2.0N·m |
| TDR5.13-CZ(K)-500A/1500V | 500 | 552 | 2488 | 151 | ||
| TDR5.13-CZ(K)-550A/1500V | 550 | 591 | 2664 | 159 | ||
| TDR5.13-CZ(K)-630A/1500V | 630 | 680 | 3065 | 170 | ||
| TDR5.13-CZ(K)-700A/1500V | 700 | 886 | 3993 | 193 | ||
| TDR5.13-CZ(K)-800A/1500V | 800 | 1250 | 5634 | 222 | ||
| TDR5.13-CZ(K)-900A/1500V | 900 | 1753 | 7901 | 231 | ||
| TDR5.13-CZ(K)-1000A/1500V | 1000 | 2411 | 10867 | 240 | ||
| TDR5.13-CZ(K)-1100A/1500V | 1100 | 3065 | 13814 | 249 | ||
| TDR5.13-CZ(K)-1250A/1500V | 1250 | 3325 | 14986 | 260 | ||
| TDR5.13-CZ(K)-1350A/1500V | 1350 | 4125 | 18592 | 272 | ||
| TDR5.13-CZ(K)-1400A/1500V | 1400 | 4763 | 21467 | 292 | ||
| TDR5.13-CZ(K)-1500A/1500V | 1500 | 5402 | 24347 | 315 | ||
| TDR5.13-CZ(K)-1600A/1500V | 1600 | 6025 | 27155 | 330 | ||
| TDR5.13-CZ(K)-1700A/1500V | 1700 | 6432 | 28990 | 341 | ||
| TDR5.13-CZ(K)-1800A/1500V | 1800 | 6952 | 31333 | 370 | ||
| TDR5.13-CZ(K)-1900A/1500V | 1900 | 7452 | 33587 | 425 | ||
| TDR5.13-CZ(K)-2000A/1500V | 2000 | 7817 | 35232 | 450 | ||
Q&A
1
What applications is the TDR5.13 High Speed DC Fuse suitable for?
The TDR5.13 Series High Speed DC Fuse is designed for high-voltage DC protection in Battery Energy Storage Systems (BESS), Power Conversion Systems (PCS), EV fast charging stations, photovoltaic (PV) inverters, battery packs, marine electrical systems, industrial DC distribution, and renewable energy applications requiring reliable short-circuit protection.
2
What are the key features of the TDR5.13 DC1500V Fuse?
The TDR5.13 Series features a rated voltage of 1500VDC, current ratings from 450A to 2000A, 250kA high breaking capacity, aR fast-acting protection, low power loss, optional fuse indicator and microswitch, and compliance with IEC 60269-4, UL248-13, and RoHS standards, making it ideal for protecting high-power DC systems.
3
Why choose the TDR5.13 High Speed DC Fuse for energy storage and EV applications?
The TDR5.13 Series is engineered to provide fast fault interruption, excellent current-limiting performance, and reliable protection for critical DC equipment. Its high breaking capacity, stable performance under demanding operating conditions, and compatibility with modern 1500VDC systems help improve equipment safety, reduce downtime, and enhance the overall reliability of energy storage, EV charging, and power conversion systems.
