Crystal Oscillator YSO210PR
◉ Applications
- 10 GB Ethernet, SONET, SATA, SAS, Fibre Channel
◉ Features
- Wide Frequency Range:10~1500MHz
- Output LVPECL or LVDS

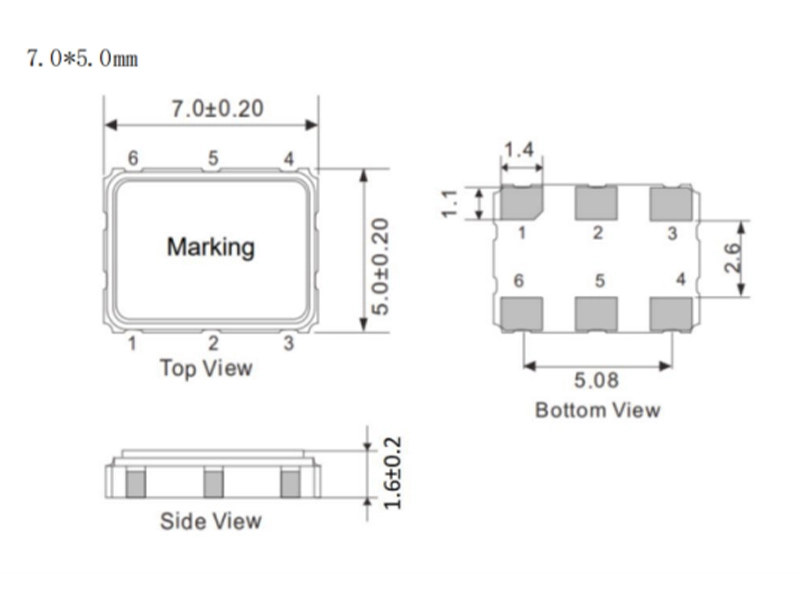

- Package Size: 3.2*2.5,5.0*3.2,7.0*5.0mm
- Quartz Crystal Differential Oscillator
Specifications
|
Item/ Type |
LVPECL |
LVDS |
Remarks |
|
Duty Cycle |
45~55% |
|
|
|
Start-up time |
10mS |
Time at Minimum Supply Voltage to be 0s |
|
|
RMS Jitter[12kHz~20MHz] |
1.0ps Typ. |
200MHZ~800MHZ |
|
|
2.0ps Typ. |
801MHZ~1500MHZ |
||
|
Aging |
±3ppm |
25℃ First year, VDD=2.5V,3.3V |
|
|
Item/ Type |
LVPECL |
LVDS |
Remarks |
|
Output Frequency Range |
10MHZ~1500MHZ |
|
|
|
Supply Voltage |
2.5V,3.3V |
|
|
|
Total Stability |
±25ppm,±50ppm, or specify |
Inclusive of Initial tolerance at 25℃, 1st year. |
|
|
Operating Temperature Range |
-40~+85℃, or specify |
|
|
|
Storage Temperature Range |
-55~+150℃ |
|
|
|
Current Consumption |
80mA Max |
50mA Max |
OE=VDD, LVPECL=(50)Ωor LVDS=(100)Ω |
|
Disable Current |
16mA Typ. |
OE=GND |
|
|
Output Voltage(LVPECL) |
VOH=VDD-1.03 V Min |
— |
DC characteristics |
|
VOL=VDD-1.6 V Max |
— |
||
|
Output Voltage(LVDS) |
|
VOH=1.6 V Max |
DC characteristics |
|
— |
VOL=0.9 V Min |
||
|
Output Load Condition |
L_PECL=50Ω |
— |
Terminated to VDD-2.0V |
|
— |
L_LVDS=100Ω |
Connected between OUT to OUT |
|
|
Input Voltage |
VIH=70% VDD Min, VIL=30%VDD Max |
OE terminal |
|
|
Rise Time/ Fall Time |
InS Max |
LVPECL: Between 20% and 80% of(VOH- |
|
Current Consumption
|
Pin |
#1 |
#2 |
#3 |
#4 |
#5 |
#6 |
|
FUNCTION |
OE |
NC |
GND |
OUT+ |
OUT- |
VDD |
Notes: To maintain stable operation provide a 0.01uF to 0.1uF by-pass capacitor at alocation as near as possible to the power source terminal of the crystal product (between VDD-GND).
