Programmable Crystal Oscillator YSO690PR
◉ Applications
- Consumer
- Industrial
◉ Features
- Fast Delivery
- PLL Circuit Provides Wide Frequency Range Application (1~200MHz)
- Low Jitter Design with New Developed IC
- Package Size: 2.0*1.6, 2.5*2.0, 3.2*2.5, 5.0*3.2, 7.0*5.0mm
Specifications
|
Item/Type |
CMOS |
||
|
Supply Voltage |
1.8V |
2.5V |
3.3V |
|
Frequency Range |
1MHz~125MHz |
1MHz～20OMHz |
1MHz~200MHz |
|
Supply Voltage Variation(VDD)10% |
1.62V~1.98V |
2.25V~2.75V |
2.97V~3.63V |
|
Standby Current |
400uA |
||
|
Current Consumption |
35mA Max |
||
|
Frequency Tolerance |
±30ppm, ±50ppm or specify |
||
|
Output Load |
15pF |
||
|
Operating Temperature Range |
40~+85°C,or specify |
||
|
Storage Temperature Range |
-55~+150°C |
||
|
Voltage VOH(Min.)/VOL(Max.) |
VOH=90%VDD/VOL=10%VDD |
||
|
Duty Cycle |
45~55% |
||
|
Rise Time/Fall Time |
5ns Max |
||
|
Start-up Time |
7ms Max |
||
|
Phase Jitter [12 kHz~20 MHz] |
1.5ps Typ |
||
|
Supply Current |
See Below |
||
|
Frequency Aging (at 25°C) |
±3 ppm /year Max |
||

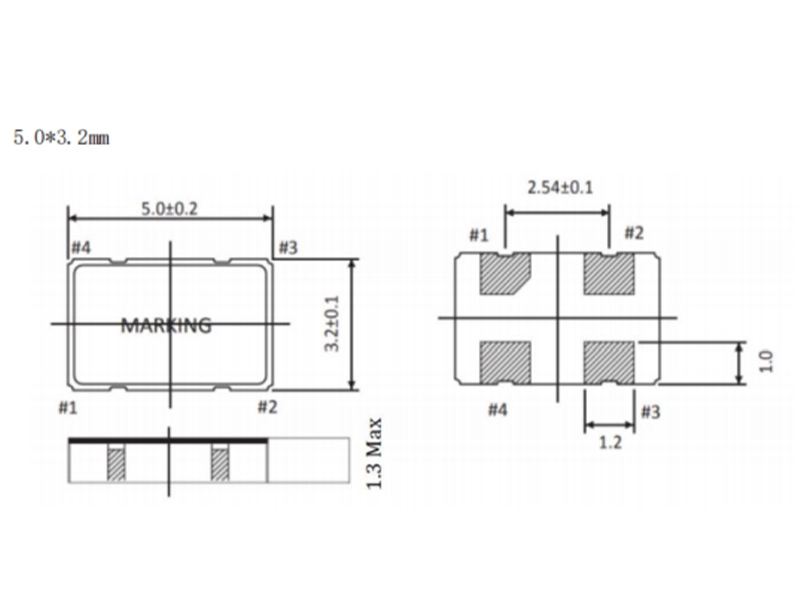

Dimensions and Recommended Land Pattern
|
Pin |
Symbol |
Functionality |
|
|
1 |
OE/ST/NC |
Output Enable |
H: specified frequency output |
|
Standby |
H: specified frequency output |
||
|
No Connect |
Pin 1= VDD or Pin 1 is Open: Specified frequency |
||
|
2 |
GND |
Power |
Electrical ground |
|
3 |
OUT |
Output |
Oscillator output |
|
4 |
VDD |
Power |
Power supply voltage |
