Opto-coupler High Speed Logic Gate Power Supply UL Certified HPL6S135
The HPL6S135 optocouplers consist of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output, and the data transmission rate can reach 1 Mbit/s. The coupled parameters are guaranteed over the temperature range of -40°C to +110°C. Products have strong common mode rejection capability.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Detail
Features
● High speed: 1 Mbit/s.
● Logic gate output.

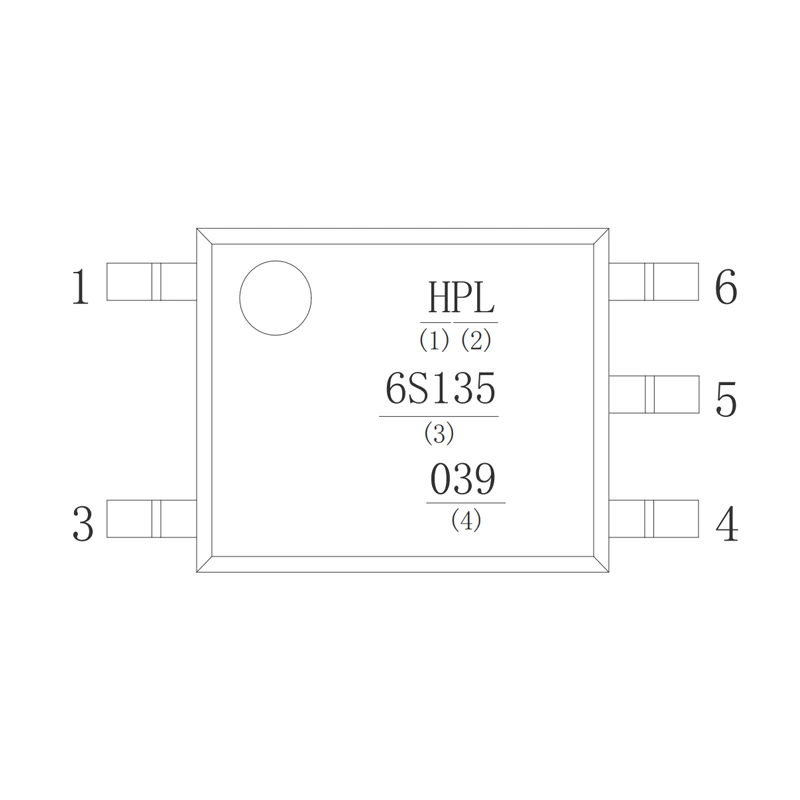

● SOP 5L plastic package.
● TTL/LSTTL Compatible: 5V supply
● Compliance with the latest requirements of the RoHS Directive and the latest REACH requirements.
● The products comply with UL/cUL,VDE,CQC safety certification.
Applications
● Line receivers
● Data transmission.
● Computer-peripheral interface.
● Pulse transformer replacement.
● Switching power supply.
| Part No. | HPL6S135 |
| Replacement Part No. | ACPL-M50L |
| Package | SOP5 |
| Output Type | OC |
| Transmission Rate | 1M |
| CMR | >10kV(VCM=1000V) |
| Operating Temperature(℃) | -40~85 |
| Isolation Voltage(VRMS) | 3750 |
| Safety Certification | UL/VDE/CQC |
