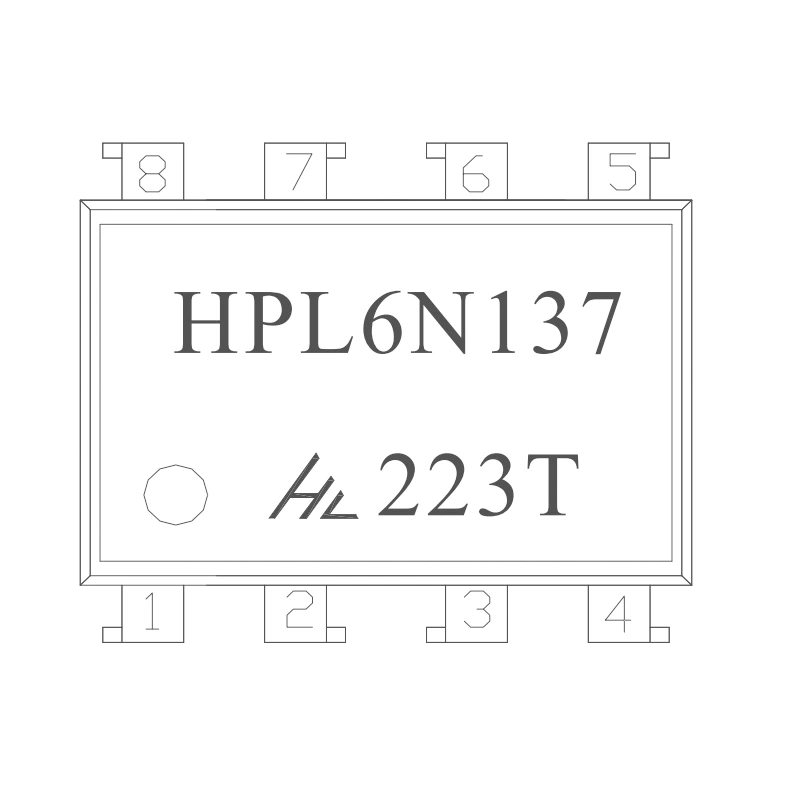

Opto-coupler High Speed Logic Gate Line Receivers HPL6N137 Series
The HPL6N137-× optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. A maximum input of 5mA will provide a minimum output sink current of 13mA. Products have strong common mode rejection capability.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Detail
Features
● High speed: 10 Mbit/s.
● Logic gate output.
● The isolation voltage between input and output is high: VISO≥5000Vrms.
● 8L SMD/DIP plastic package.
● TTL/LSTTL Compatible: 5V supply
● Compliance with the latest requirements of the RoHS Directive and the latest REACH requirements.
Applications
● Line receivers
● Data transmission.
● Computer-peripheral interface.
● Pulse transformer replacement.
● Switching power supply.
| Part No. | HPL6N137 |
| Replacement Part No. | 6N137 |
| Package | DIP8/SMD8 |
| Output Type | OC |
| Transmission Rate | 10M |
| CMR | >10kV(VCM=1000V) |
| Operating Temperature(℃) | -40~85 |
| Isolation Voltage(VRMS) | 5000 |
| Safety Certification | UL/VDE/CQC |
