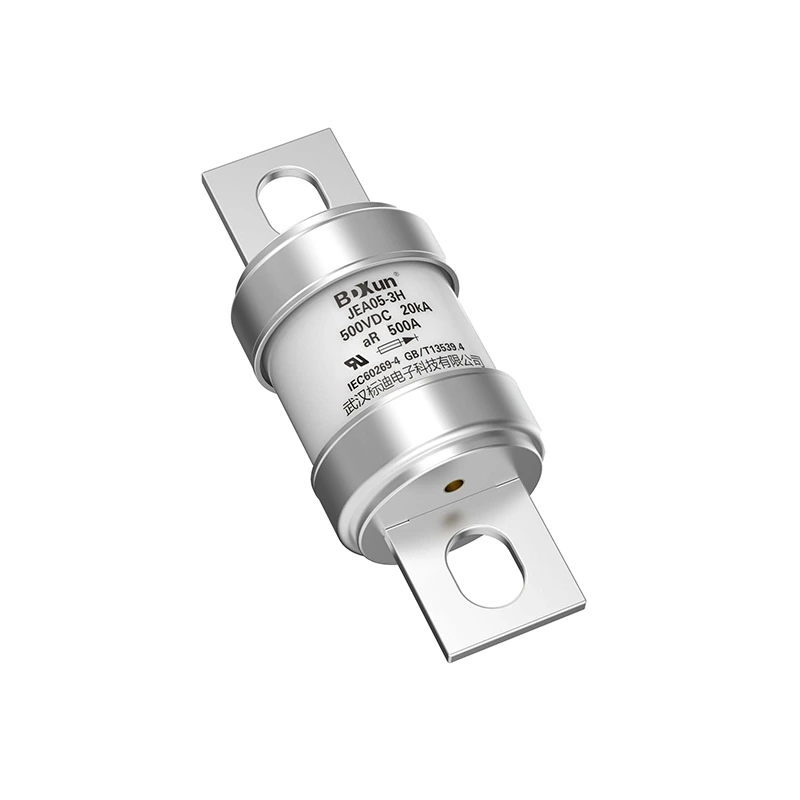

EV Fuses Fast-Acting 500VDC/750VDC UL Certified JEA05 Series
Bolted Fuse for Road Vehicles UL certified
DESIGN REFERENCE: JASO D622、ISO 8820.8、GB/T 31465、NB/T 10329-2019、UL248-20
RATED VOLTAGE: 500VDC/750VDC
RATED CURRENT: 100A～500A
BREAKING CAPACITY: 20kA(DC), L/R=2±0.5ms
CERTIFICATION: UL、RoHS
APPLICATION: Electric Vehicle Driving Power System, Power Conversion System, Energy Storage and Power Battery, Energy Storage Capacitor, Frequency Conversion Controller, Charger and Other Vehicle Devices.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
| Catalog Numbers | Current ratings(A) |
I²t(kA²s) | 1.0ln WATTS KOSS(W) |
Size | Installation torque |
|
| Pre-arc | Clearing | |||||
| JEA05-3H-200A/500V | 200 | 3.92 | 16.5 | 36 | JEA05-3H | M10：20±2.0N·m |
| JEA05-3H-250A/500V | 250 | 6.97 | 29.3 | 39 | ||
| JEA05-3H-300A/500V | 300 | 10.9 | 45.8 | 48 | ||
| JEA05-3H-350A/500V | 350 | 15.7 | 65.9 | 58 | ||
| JEA05-3H-400A/500V | 400 | 22.59 | 94.9 | 68 | ||
| JEA05-3H-450A/500V | 450 | 27.88 | 117.2 | 76 | ||
| JEA05-3H-500A/500V | 500 | 52.07 | 154.9 | 82 | ||
| Note：I²t above is 20kA@2ms Typical data during breaking for reference | ||||||
