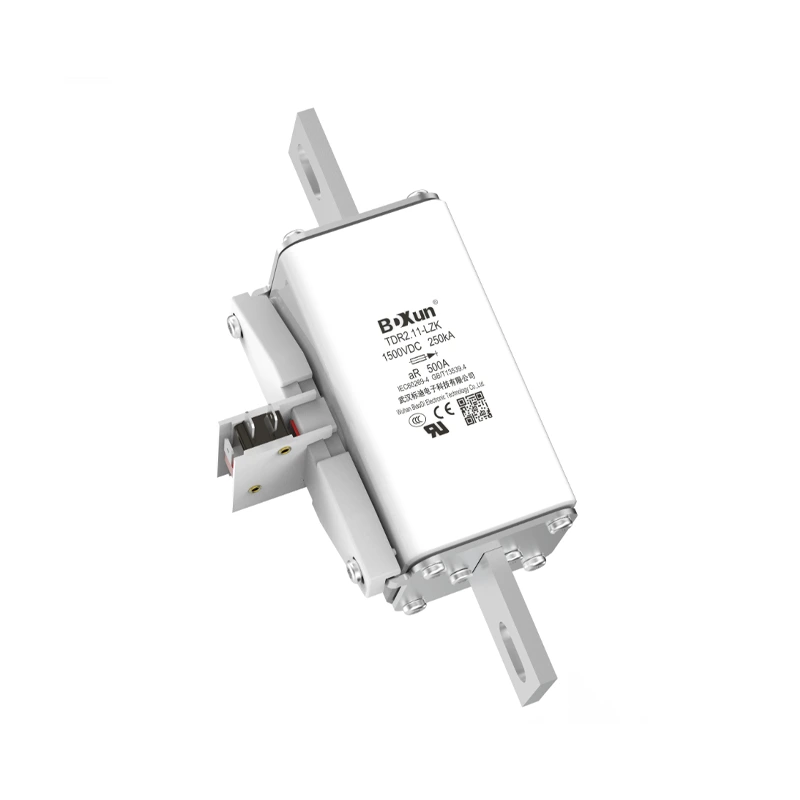

DC1500V 100A-550A High Breaking Capacity Fast Fuse TDR2.11 Series
for Energy Storage System
DESIGN REFERENCE: UL248-13、IEC 60269-4、GB/T 13539.4
RATED VOLTAGE: DC1500V
RATED CURRENT: 100A～500A
BREAKING CAPACITY: DC250kA
CERTIFICATION: 3C、CE、UL、TUV、RoHS
APPLICATION: Electric vehicle drive power systems, Power conversion systems, Power batteries, Frequency converters, Chargers, Inverters, Energy storage, and Ships.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
● Small Size
● High Breaking Capacity
● High Temperature Resistance
● Mechanical Vibration
● Chemical Load Resistance
● Low watts loss
| Catalog Numbers | Current ratings(A) |
I²t(kA²s) | 1.0ln WATTS KOSS(W) |
Size | Installation torque |
|
| Pre-arc | Clearing | |||||
| TDR2.11-(ZK)-100A/1500V | 100 | 5.378 | 17.22 | 28 | TDR2.11-(ZK) | M10: 20±1.0N·m |
| TDR2.11-(ZK)-125A/1500V | 125 | 8.177 | 26.18 | 35 | ||
| TDR2.11-(ZK)-160A/1500V | 160 | 13.658 | 43.73 | 47 | ||
| TDR2.11-(ZK)-200A/1500V | 200 | 16.697 | 53.45 | 55 | ||
| TDR2.11-(ZK)-250A/1500V | 250 | 23.855 | 76.37 | 67 | ||
| TDR2.11-(ZK)-315A/1500V | 315 | 48.666 | 155.8 | 83 | ||
| TDR2.11-(ZK)-350A/1500V | 350 | 59.662 | 191 | 93 | ||
| TDR2.11-(ZK)-400A/1500V | 400 | 99.984 | 320.09 | 109 | ||
| TDR2.11-(ZK)-450A/1500V | 450 | 107 | 343.65 | 105 | ||
| TDR2.11-(ZK)-500A/1500V | 500 | 156.5 | 501.03 | 110 | ||
| TDR2.11-(ZK)-550A/1500V | 550 | 186.4 | 596.75 | 130 | ||
| TDR2.11-B(ZK)-100A/1500V | 100 | 5.378 | 17.22 | 28 | TDR2.11-B(ZK) | M10: 20±1.0N·m |
| TDR2.11-B(ZK)-125A/1500V | 125 | 8.177 | 26.18 | 35 | ||
| TDR2.11-B(ZK)-160A/1500V | 160 | 13.658 | 43.73 | 47 | ||
| TDR2.11-B(ZK)-200A/1500V | 200 | 16.697 | 53.45 | 55 | ||
| TDR2.11-B(ZK)-250A/1500V | 250 | 23.855 | 76.37 | 67 | ||
| TDR2.11-B(ZK)-315A/1500V | 315 | 48.666 | 155.8 | 83 | ||
| TDR2.11-B(ZK)-350A/1500V | 350 | 59.662 | 191 | 93 | ||
| TDR2.11-B(ZK)-400A/1500V | 400 | 99.984 | 320.09 | 109 | ||
| TDR2.11-B(ZK)-450A/1500V | 450 | 107 | 343.65 | 105 | ||
| TDR2.11-B(ZK)-500A/1500V | 500 | 156.5 | 501.03 | 110 | ||
| TDR2.11-B(ZK)-550A/1500V | 550 | 186.4 | 596.75 | 130 | ||
| TDR2.11-L(ZK)-100A/1500V | 100 | 5.378 | 17.22 | 28 | TDR2.11-L(ZK) | M10: 20±1.0N·m |
| TDR2.11-L(ZK)-125A/1500V | 125 | 8.177 | 26.18 | 35 | ||
| TDR2.11-L(ZK)-160A/1500V | 160 | 13.658 | 43.73 | 47 | ||
| TDR2.11-L(ZK)-200A/1500V | 200 | 16.697 | 53.45 | 55 | ||
| TDR2.11-L(ZK)-250A/1500V | 250 | 23.855 | 76.37 | 67 | ||
| TDR2.11-L(ZK)-315A/1500V | 315 | 48.666 | 155.8 | 83 | ||
| TDR2.11-L(ZK)-350A/1500V | 350 | 59.662 | 191 | 93 | ||
| TDR2.11-L(ZK)-400A/1500V | 400 | 99.984 | 320.09 | 109 | ||
| TDR2.11-L(ZK)-450A/1500V | 450 | 107 | 343.65 | 105 | ||
| TDR2.11-L(ZK)-500A/1500V | 500 | 156.5 | 501.03 | 110 | ||
| TDR2.11-L(ZK)-550A/1500V | 550 | 186.4 | 596.75 | 130 | ||
| TDR2.11-M(ZK)-100A/1500V | 100 | 5.378 | 17.22 | 28 | TDR2.11-M(ZK) | M8: 12±1.0N·m |
| TDR2.11-M(ZK)-125A/1500V | 125 | 8.177 | 26.18 | 35 | ||
| TDR2.11-M(ZK)-160A/1500V | 160 | 13.658 | 43.73 | 47 | ||
| TDR2.11-M(ZK)-200A/1500V | 200 | 16.697 | 53.45 | 55 | ||
| TDR2.11-M(ZK)-250A/1500V | 250 | 23.855 | 76.37 | 67 | ||
| TDR2.11-M(ZK)-315A/1500V | 315 | 48.666 | 155.8 | 83 | ||
| TDR2.11-M(ZK)-350A/1500V | 350 | 59.662 | 191 | 93 | ||
| TDR2.11-M(ZK)-400A/1500V | 400 | 99.984 | 320.09 | 101 | ||
| TDR2.11-M(ZK)-450A/1500V | 450 | 107 | 343.65 | 105 | ||
| TDR2.11-M(ZK)-500A/1500V | 500 | 156.5 | 501.03 | 110 | ||
| TDR2.11-M(ZK)-550A/1500V | 550 | 186.4 | 596.75 | 130 | ||
| Note：I²t above is 250kA@10ms Typical data during breaking for reference | ||||||
