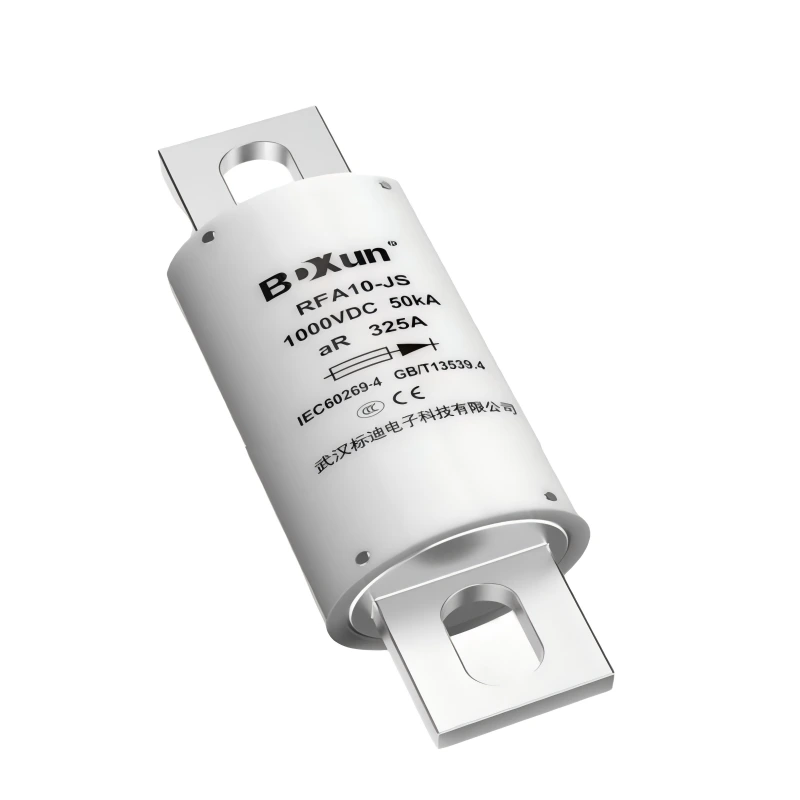

1000V DC FUSE FAST ACTING for PV 250A-630A RFA10 series
DESIGN REFERENCE: UL248-13、IEC 60269-4、GB/T 13539.4
RATED VOLTAGE: DC1000V
RATED CURRENT: 250A～630A
BREAKING CAPACITY: DC50kA
CERTIFICATION: 3C、CE、RoHS
APPLICATION: PV, Power batteries, Frequency converters, Chargers, Inverters, Energy storage, and Ships.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product features
● Small Size
● High Breaking Capacity
● High Temperature Resistance
● Mechanical Vibration / Impact Resistance
● Chemical Load Resistance
| Catalog Numbers | Current ratings |
I²t(kA²s) | 1.0ln WATTS KOSS(W) |
Size | Installation torque |
|
| Pre-arc | Clearing | |||||
| RFA10-JS-250A/1000V | 250 | 26.95 | 84.95 | 41.8 | RFA10-JS | M10: 20±1.0N ·m |
| RFA10-JS-275A/1000V | 275 | 25.68 | 80.95 | 43.3 | ||
| RFA10-JS-300A/1000V | 300 | 39.93 | 125.87 | 45.2 | ||
| RFA10-JS-315A/1000V | 315 | 43.23 | 136.27 | 46.1 | ||
| RFA10-JS-325A/1000V | 325 | 45.61 | 143.77 | 47.2 | ||
| RFA10-JS-350A/1000V | 350 | 55.96 | 176.39 | 48.9 | ||
| RFA10-JS-375A/1000V | 375 | 63.61 | 200.51 | 50.8 | ||
| RFA10-JS-400A/1000V | 400 | 89.40 | 281.80 | 64.3 | ||
| RFA10-JS-450A/1000V | 450 | 96.10 | 302.92 | 80.2 | ||
| RFA10-JS-500A/1000V | 500 | 110.20 | 347.37 | 89.3 | ||
| RFA10-JS-550A/1000V | 550 | 124.76 | 393.26 | 92.1 | ||
| RFA10-JS-600A/1000V | 600 | 179.90 | 567.07 | 104.7 | ||
| RFA10-JS-630A/1000V | 630 | 183.30 | 577.78 | 110.2 | ||
| Note: I²t above is 50kA@10ms Typical data during breaking for reference | ||||||
